Guide de l'utilisateur!! ELM 327 V1.5 OBD 2 ELM327 Interface USB Scanner CAN-BUS outil de Diagnostic câble Code prise en charge protocoles de OBD-II nouveau (USB type)

€9.70 €12.90
Vous économisez €3.20 (24 %)
Quantité
Checkout Secure

User Guide!! ELM 327 V1.5 OBD 2 ELM327 USB Interface CAN-BUS Scanner Diagnostic Tool Cable Code Support OBD-II Protocols New


Hello. for usb type 327

1.Current we make no disks and user guide,because installation disk is very easy broken on the way of shipping;
  Some clients will make dispute directly after they saw disk is broken,that is very bad!

2.But please don't worry! You can download software from www.elm327.com,

  About the user guide, buyer can read in our description or ask us send user guide file by email.

3.We will consider make it with user guide back according to situation.

elm327 USB

ITEM DESCRIPTION

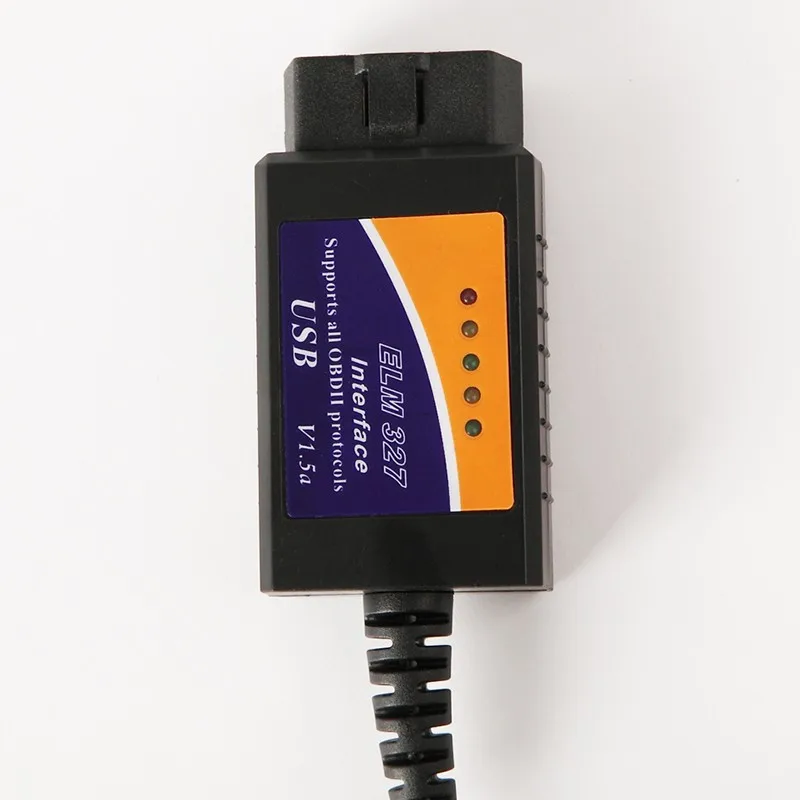

ELM327 USB 1.5 Interface

OBD-II Software for ELM327 USB is a free program that allows you to use your PC and a hardware interface to get the information from your car\'s computer.
The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer\'s hard drive, and you\'re ready to go. To uninstall the program, simply delete the entire contents of the folder where the program resides.

Highlight:

ELM327 USB Plastic connect computer.

Hardware V1.5,Software V2.1

Supports most OBDII protocols

Computer System: Windows XP/Win7 32bits,close anti-virus program to install software.

Supports 12V gasoline cars,no supports diesel&truck.

Multi-Language Available
HTB1qAIAfqmWQ1JjSZPhq6xCJFXaK



Description:


MINI OBDII USB V1.5 Scanner for Multi-brands CAN-BUS as same as ELM327 USB. Supports All OBD2 Protocol works on Windows, used to read diagnostic trouble codes, both generic and manufacturer-specific, and display your meaning (over 3000 generic code definitions in the database).



MINI OBDII USB Scanner for Multi-brands CAN-BUS as same as ELM327 USB



Top 4 Reasons To Get MINI OBDII USB V1.5 Scanner :

1. Software Version: V1.5 (depending on software)

2. Hardware Version: V1.5

3. Works with all OBD-II compliant vehicles

4. USB Cable



Supported protocols:

1.SAE J1850 PWM (41.6Kbaud)

2.SAE J1850 VPW (10.4Kbaud)

3.ISO9141-2 (5 baud init, 10.4 Kbaud)

4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5.ISO14230-4 KWP (fast init, 10.4 Kbaud)

6.ISO15765-4 CAN (11bit ID, 500 Kbaud)

7.ISO15765-4 CAN (29bit ID, 500 Kbaud)

8.ISO15765-4 CAN (11bit ID, 250 Kbaud)

9.ISO15765-4 CAN (29bit ID, 250 Kbaud)



MINI OBDII USB Scanner Functions:



1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning
    (over 3000 generic code definitions in the database).

2: Clear trouble codes and turn off the MIL ("Check Engine" light)

3: Display current sensor data, including:

4: Engine RPM

5: Calculated Load Value

6: Coolant Temperature

7: Fuel System Status

8: Vehicle Speed

9: Short Term Fuel Trim

10: Long Term Fuel Trim

11: Intake Manifold Pressure

12: Timing Advance

13: Intake Air Temperature

14: Air Flow Rate

15: Absolute Throttle Position

16: Oxygen sensor voltages / associated short term fuel trims

17: Fuel System status

18: Fuel Pressure

19: Many others



MINI OBDII USB Scanner Specifications:

Communication: USB Interface

Master Chip: ST

Driver IC: PL2303

Support System: Windows

Working Voltage: 9v ~ 16v

Working Current: 15mA

Standby Current: 0mA

Operating temperature: -40 ℃ ~ 85 ℃

Working Humidity: less than 60%

Size: 45mm * 25mm * 75mm(Cable Length 1.5M)



Compatible systems:

Software support platform: Windows XP, Windows 7/8.



Compatible software:

Window: ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.



Package List:

1pc x Mini OBD2 USB Diagnostic Cable

1pc x Manual



Software display ( For reference)

HTB1a95kLXXXXXbrXXXXq6xXFXXXfHTB1JM44LXXXXXazXVXXq6xXFXXXJHTB1P4KjLXXXXXcEXXXXq6xXFXXXvHTB1QG1mLXXXXXaRXXXXq6xXFXXXnHTB1tP48LXXXXXbUXFXXq6xXFXXXkHTB1zTWlLXXXXXaFXXXXq6xXFXXXYHTB17mSdLXXXXXbwXpXXq6xXFXXXf

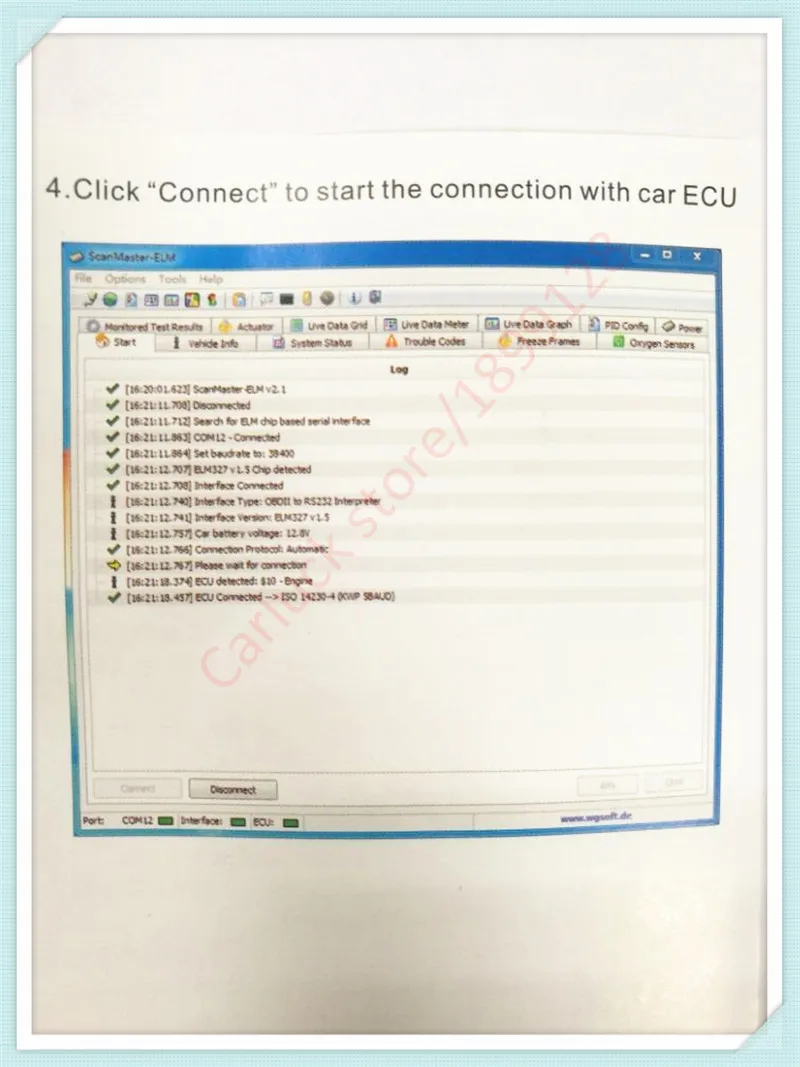

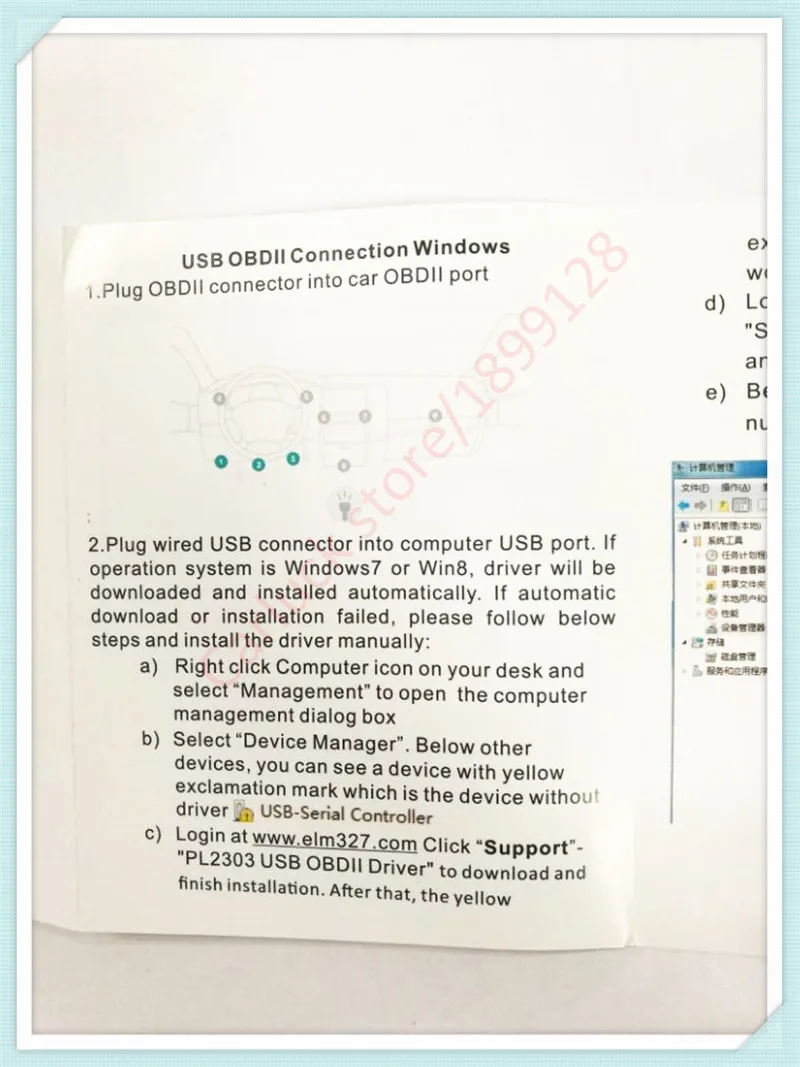

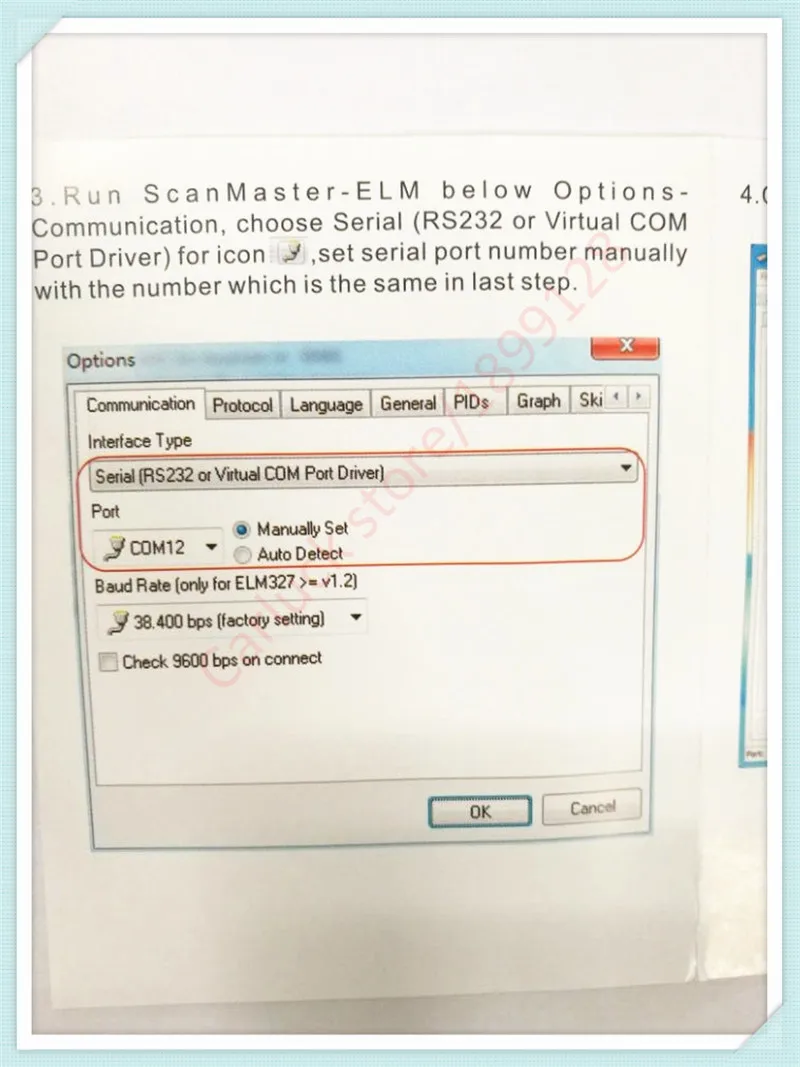

User Guide



123456



product display
